What goes on an Annual Vehicle Inspection Report Checklist?

Annual Vehicle Inspection Reports are used when a motor vehicle undergoes inspection to ensure that information technology meets regime regulated safety and emissions standards. These inspections can exist required when a title is transferred, before renewing a license plate, or as function of a periodic motor vehicle inspection. The purpose of these inspections are to ensure that every vehicle is road safe.

The very top of the course should have a identify to tape details nigh the vehicle being inspected. These details should include the license plate, VIN number, vehicle type, and owner data. The person inspecting the vehicle must meet authorities qualifications in lodge to perform the inspection and there should be a spot on the form to betoken this:

The side by side part of the class volition be the in-depth account of every part on the vehicle. This section is subjective in lodge but everything should be included when giving a detailed report of a motor vehicle. Having the parts listed will assistance the mechanic or inspector keep an accurate record of their findings. There should be a place to mark that the role is in working condition or that it needs repaired. If the part is repaired, a repair date should exist listed to complete the vehicle's records.

Brake Arrangement:

The blazon of brakes on a vehicle depends on the type and model. Because an auto heart may perform inspections on many dissimilar kinds of vehicles, all brake types should be listed nether this category. Other parts of the braking arrangement are also included.

• Service Brakes
• Parking Restriction System
• Electrical Brakes
• Hydraulic Brakes
• Vacuum Systems
• Brake Drums or Rotors
• Brake lines
• Low Pressure Warning Device
• Tractor Protection Valve
• Air Compressor

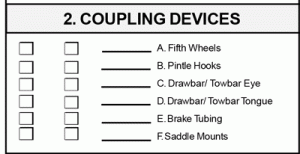

Coupling Devices:

An annual inspection class will too include a section for coupling devices. All parts used to tow should be listed in this department.

• 5th Wheels
• Pintle Hooks
• Towbar Eye
• Towbar Tongue
• Saddle Mounts

Some forms besides include safety devices or chains in this section or condone it completely. If you choose not to include towing devices on your annual inspection form, a section that covers the interior of the machine could go into the bachelor space.

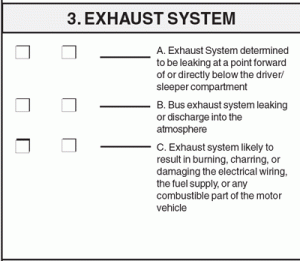

Frazzle System:

Depending on the needs of your business concern, this section tin can be designed in a few ways. The thing inspectors are looking for is whatsoever leakage, discharge or harm that could issue in fire. These three things could be listed on the form without any explanation. Another selection would be to listing the parts of the frazzle system (manifolds, gaskets, frazzle lines, mufflers, resonators, tail pipe, and hardware) so that y'all tin can cheque off if they're in working condition or not. Or you could choose to go into detail about the condition of the exhaust arrangement:

• Exhaust Organisation determined to be leaking at a indicate forrard of or directly below the commuter/sleeper compartment
• Bus exhaust system leaking or discharge into the atmosphere
• Exhaust organisation likely to result in called-for, charring, or damaging the electrical wiring, the fuel supply, or any combustible part of the motor vehicle

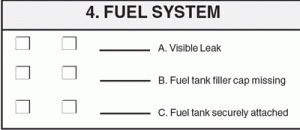

Fuel System:

The fuel tank is normally inspected for these three things:

• Visible Leak
• Fuel tank filler cap missing
• Fuel tank deeply attached

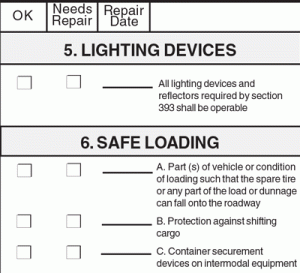

Lighting Devices

Lighting devices include the head lights, lamps, turn signals, and reflectors. The requirements for lighting devices depend on the vehicle blazon. A typical almanac inspection form includes a line similar to this ane:

• All lighting devices and reflectors required past section 393 shall be operable

If there is room on the course, some inspection companies cull to list lights, lamps and reflectors on the form instead of the to a higher place statement.

Safe Loading:

Inspections that see a lot of big rigs volition want to include this office. If this is rare at your automobile inspection eye, considering adding more parts or descriptions to another section.

• Part (s) of vehicle or status of loading such that the spare tire or any function of the load or dunnage tin autumn onto the roadway
• Protection against shifting cargo
• Container securement devices on intermodal equipment

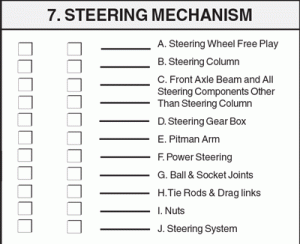

Steering Mechanism:

The steering system is thoroughly inspected to see if at that place is excessive wear on the machinery or if it is out of alignment. The below checklist is the almost common used terminology on an inspection grade:

• Steering Bike Complimentary Play
• Steering Column

• Forepart Axle Beam and All Steering Components Other than Steering Cavalcade
• Steering Gear Box
• Pitman Arm
• Power Steering
• Brawl & Socket Joints
• Tie Rods & Elevate links
• Nuts
• Steering Organization

Some forms will also include idler arm and gear box.

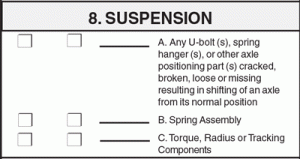

Suspension:

Suspension is what keeps the wheel in contact with the road. An inspection company can keep this section simple by adding these 3 points as a quick overview:

• Any U-bolt (s), leap hanger (s), or other beam positioning part (s) croaky, broken, loose or missing resulting in shifting of an axle from its normal position
• Spring Assembly
• Torque, Radius or Tracking Components

Some almanac inspection forms will as well list the parts of the spring associates by including a line for each tire.

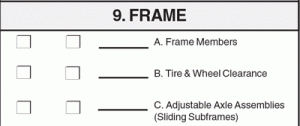

Frame:

Some forms get into particular about the exterior condition of the car by including doors, windows, later on marketplace kits, secured racks and any dents to the trunk. This almanac inspection class focuses on the frame of the motorcar:

• Frame Members
• Tire & Cycle Clearance
• Adjustable Beam Assemblies (Sliding Subframes)

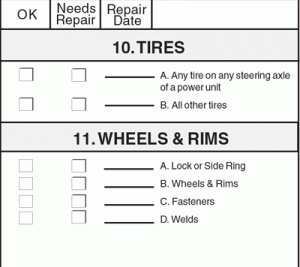

Tires:

This section varies from course to form. These two lines are the most mutual:

• Whatsoever tire on any steering axle of a power unit
• All other tires

Other forms will have a more detailed study about what the inspection found regarding the condition of the tires:

• Tire pressure
• Tire status and habiliment
• Tire blazon and size
• Corporeality of wearable LF___RF____LR___RR___
• Sidewall condition

These checklists are a lot to consider but keep information technology equally simple equally you tin and focus on what your business organization comes across the near.

Wheels:

This department is frequently grouped with the Tire department. Keeping the separate or merging them together is up to you.

• Lock or Side Ring
• Wheels & Rims
• Fasteners
• Welds

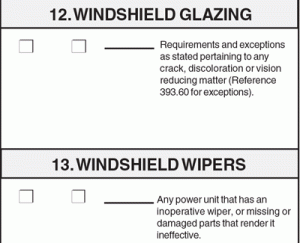

Windshield Glazing:

Requirements and exceptions as stated pertaining to any cleft, discoloration or vision reducing affair (Reference 393.60 for exceptions).

The higher up statement keeps this function of the course uncomplicated and clear. All the same, you lot could choose to add illegal tinting or any other prophylactic hazard you've seen in your business.

Windshield Wipers:

Any power unit that has an inoperative wiper, or missing or damaged parts that render it ineffective. If you choose to include a section that goes into detail almost the exterior of the auto, the windshield wipers would exist better placed there. Since this grade focuses more on the frame, the to a higher place line has been included in a carve up part.

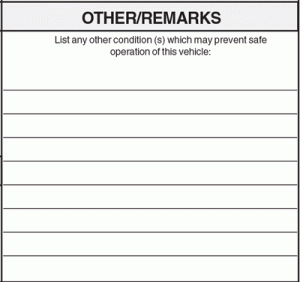

Other/Remarks

A mechanic could encounter a part non listed that is creating a safety issue. This department is critical for noting these instances.

And like every grade, your annual inspection record should include an expanse for Terms and Conditions:

These terms say:

U.S. Department of Transportation – Federal Motor Carrier Condom Administration: Periodic Inspection Tape Keeping Requirements
396.21 (b) (1) The original or a re-create of the inspection report shall be retained by the motor carrier, intermodal equipment provider, or other entity that is responsible for the inspection for a period of xiv months from the appointment of the inspection written report. The original copy of the inspection report must be retained where the vehicle is either housed or maintained. (2) The original or a re-create of the inspection written report must be available for inspection upon demand of an authorized Federal, Land or local official

The most important thing to remember when putting together a class for your business is to make certain it makes sense for you. Any diction to a higher place should be changed to reflect the terminology about used by you lot and your crew. At Printit4Less, we will make any changes you demand for free when you purchase an Annual Vehicle Inspection form template.
